1064 nm PBS/PBC

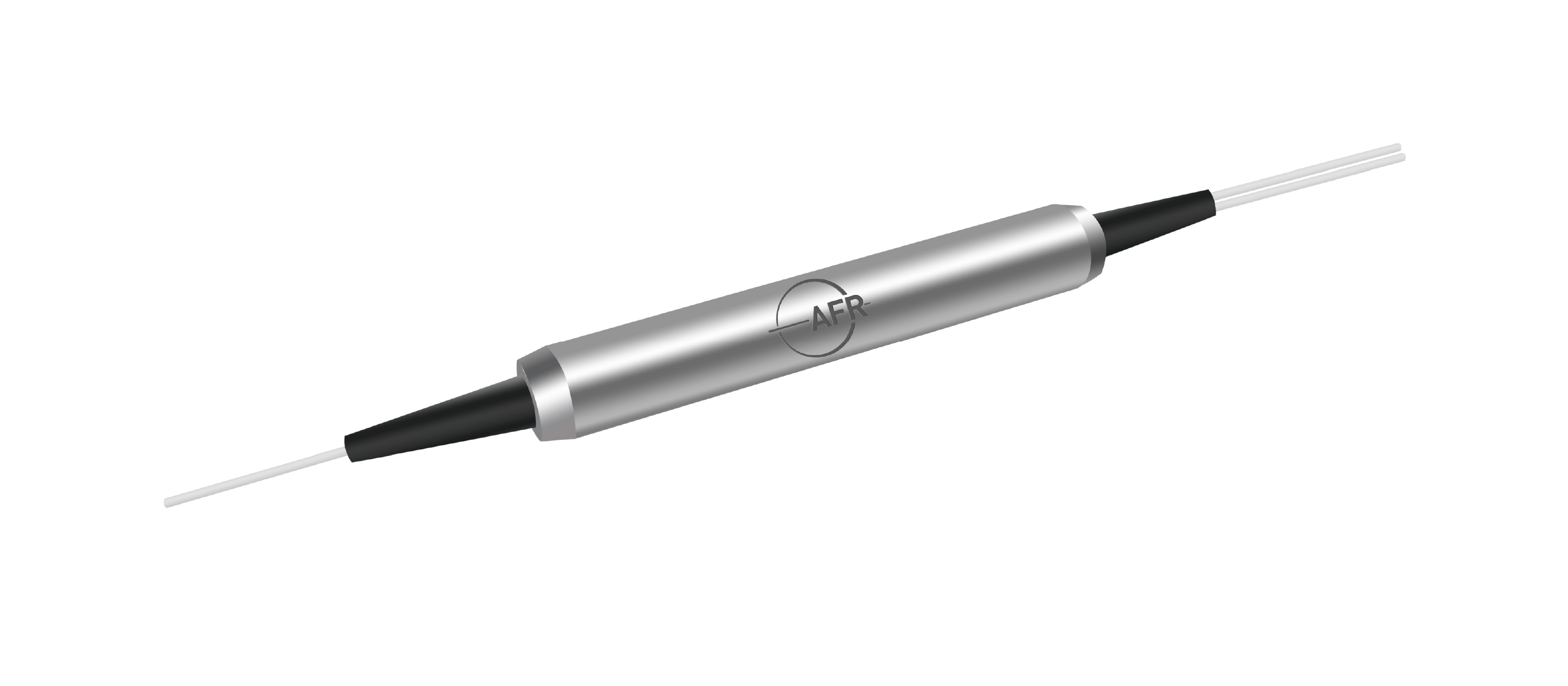

The 1064 nm Polarization Beam Combiner/Splitter is a compact, high performance lightwave component that combines two orthogonal polarization signals into one output fiber. The most common application is to combine the light of two pump lasers into one single fiber by doubling pump power. The typical configuration uses two PM fibers as input and SM fiber as output. The device can also be used as a beam splitter.

Inquiry now Download

Product Detail

Key Features	Applications
High Extinction Ratio	Fiber Lasers
Low Insertion Loss	Fiber Sensing
Compact Size

Specifications

Parameter	Unit	Grade P	Grade A
Center Wavelength (λc)	nm	1064
Operating Wavelength Range	nm	λc ± 20
Typ. Insertion Loss	dB	0.6	0.7
Max. Insertion Loss	dB	0.8	0.9
Min. Extinction Ratio (for Splitter Only), 23 ℃	dB	22	20
Min. Return Loss	dB	50
Min. Directivity	dB	50
Max. Optical Power (Continuous Wave)	mW	500
Fiber Type	-	PM980 Panda Fiber for Ports 1 & 2
	-	HI1060 or PM Panda Fiber for Port 3
Max. Tensile Load	N	5
Operating Temperature	℃	- 5 to + 70
Storage Temperature	℃	- 40 to + 85

¹IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.

²Connector key is aligned to slow axis.
