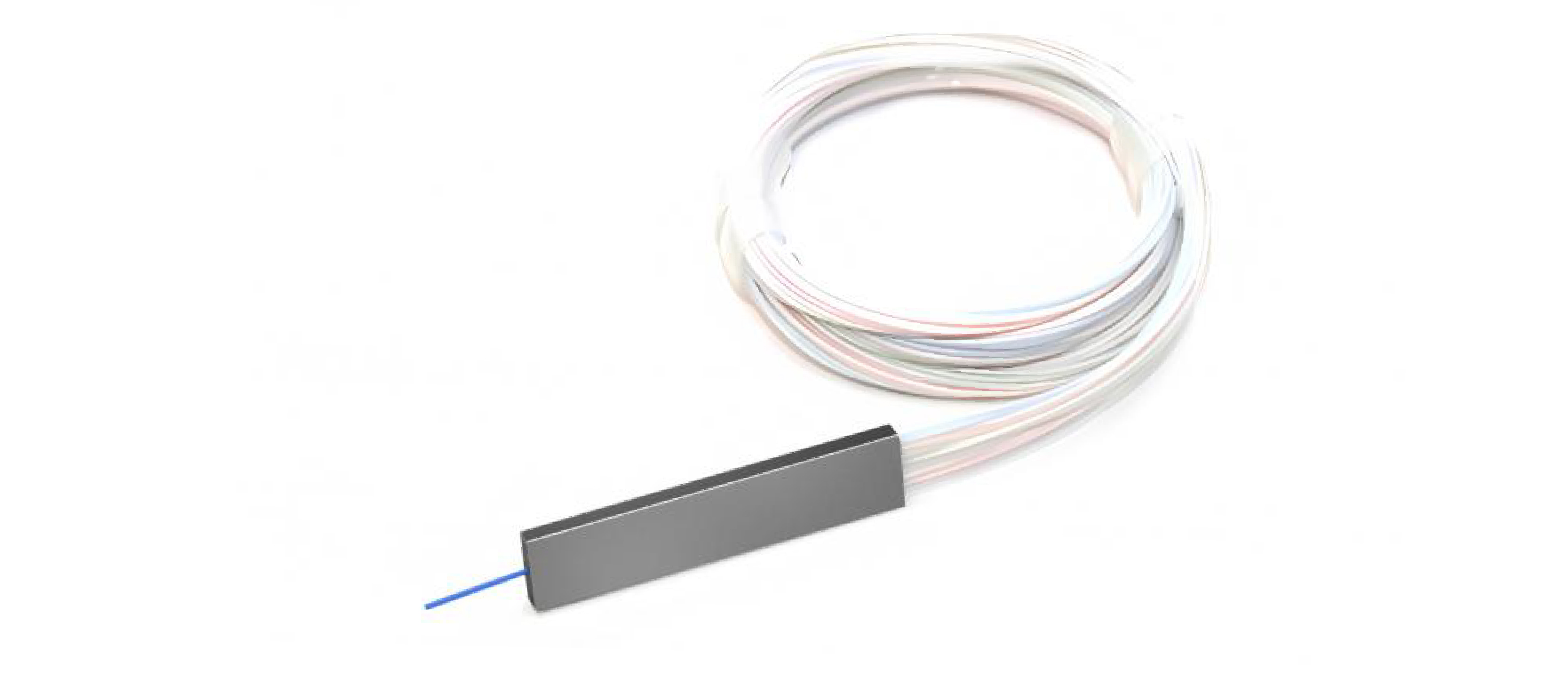

Planar Lightwave Circuit Splitter (1×N)

The Planar Lightwave Circuit Splitter is based on unique silica glass waveguide process. It features excellent optical performance with low insertion loss, low PDL, high return loss over a wide wavelength range from 1260 nm to 1620 nm. It is used in FTTx Systems, LAN, WAN and Metro Networks, Analog Passive Optical Networks, CATV Networks and other applications in fiber optics systems.

Inquiry now Download

Product Detail

Key Features	Applications
High Return Loss	Metro Networks
Low Insertion Loss	Long Haul Networks
Low Polarization Dependent Loss

Specifications

Parameter	Unit	Value
Configuration	-	1 × 4	1 × 8	1 x 16	1 x 32
Operating Wavelength	nm	1260 - 1650
Max. Insertion Loss	dB	7.5	10.5	13.5	16.5
Max. Uniformity	dB	0.5	0.6	1.2	1.3
Max. PDL	dB	0.2	0.2	0.2	0.3
Min. Return Loss	dB	50
Min. Directivity	dB	55
Fiber Type	-	SMF-28 Fiber
Operating Temperature	℃	- 40 to + 85
Storage Temperature	℃	- 40 to + 85
Package Dimensions (L x W x H) for Bare Fiber	mm	40 × 4 × 4	40 × 4 × 4	50 × 7 × 4	50 × 7 × 4
Package Dimensions (L x W x H) for 900 μm Loose Tube	mm	60 × 7 × 4	60 × 7 × 4	60 × 12 × 4	80 × 20 × 6
Package Dimensions (L x W x H) for 2 mm & 3 mm Cable	mm	100 × 80 × 10	100 × 80 × 10	120 × 80 × 18	141 × 115 × 18

¹Above specifications are for device without connector.
²For device with connectors, IL will be 0.3 dB higher, RL will be 5 dB lower.
